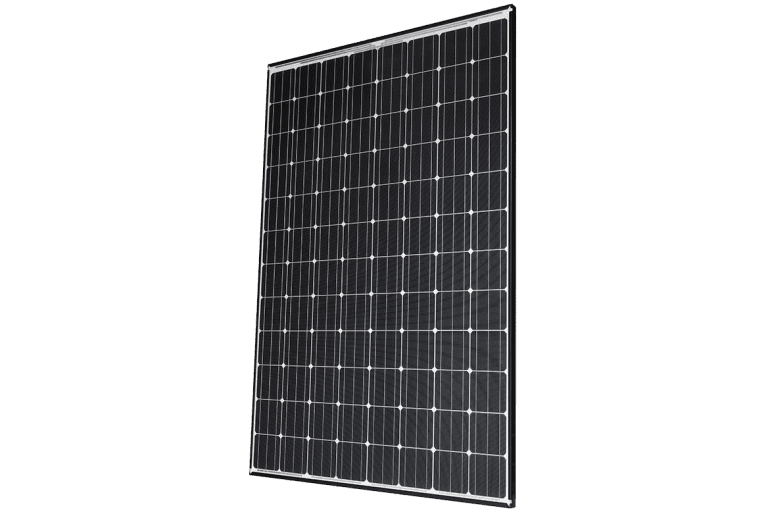

Panasonic HIT N330 Solar Panel

PremiumHIT® TechnologyHigh Temperature

The Panasonic HIT® N330 represents cutting-edge solar technology, combining heterojunction cells with industry-leading temperature performance. Its unique cell structure and advanced manufacturing deliver exceptional efficiency and reliable long-term power output, even in challenging conditions.

Power Output
330W
Efficiency
19.7%
Temperature Coefficient
-0.258%/°C
Warranty
25 Years

Key Features & Benefits

HIT® Technology

Unique heterojunction cells combine monocrystalline and amorphous silicon layers for industry-leading efficiency.

Temperature Performance

Industry-leading temperature coefficient of -0.258%/°C ensures excellent performance in high heat.

High Energy Output

19.7% module efficiency with excellent low-light performance and anti-reflection coating.

Reliable Quality

Manufactured in Japan with rigorous quality control and backed by Panasonic's 25-year warranty.

Technical Specifications

Maximum Power (Pmax)
330W
Module Efficiency
19.7%
Power Tolerance
+10/-0%
Maximum Power Voltage (Vmp)
58.0V
Maximum Power Current (Imp)
5.70A
Open Circuit Voltage (Voc)
69.7V
Short Circuit Current (Isc)
6.07A
Temperature Coefficient (Pmax)
-0.258%/°C
