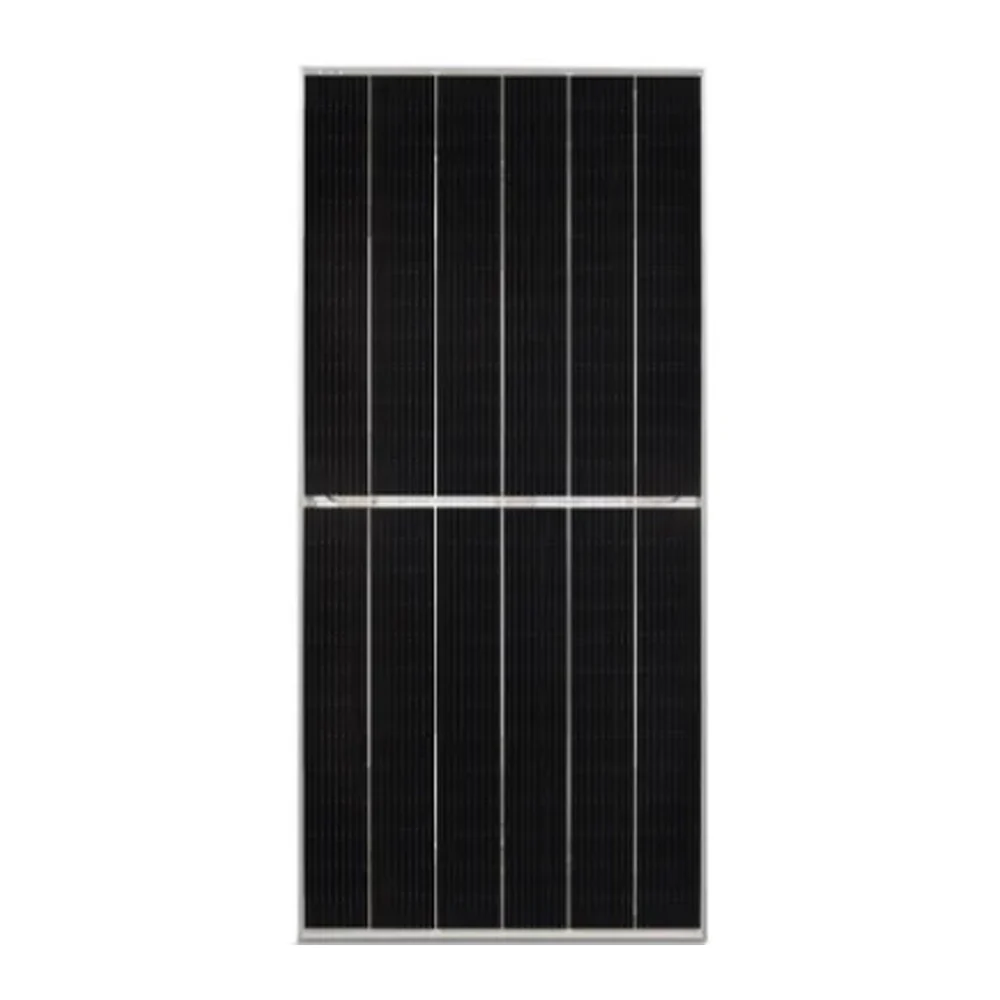

JinkoSolar Tiger Pro 72HC Solar Panel
JinkoSolar Logo

JinkoSolar Tiger Pro 72HC 530-550W

PremiumHigh EfficiencyMBB Technology

The JinkoSolar Tiger Pro 72HC series combines advanced Multi Busbar Technology with high-efficiency mono-facial modules. Available in power outputs from 530W to 550W, these panels deliver exceptional performance with reduced hot spot risk and superior reliability in extreme conditions.

Power Output
530-550W
Efficiency
Up to 21.33%
Temperature Coefficient
-0.35%/°C
Product Warranty
12 Years

Key Features & Benefits

Multi Busbar Technology

Better light trapping and current collection to improve module power output and reliability.

Reduced Hot Spot Loss

Optimized electrical design and lower operating current for reduced hot spot loss and better temperature coefficient.

Extended Warranty

12-year product warranty and 25-year linear power warranty with only 0.55% annual degradation.

Environmental Durability

High salt mist and ammonia resistance, with excellent performance in extreme conditions.

Technical Specifications

Maximum Power (Pmax)
530-550W
Module Efficiency
20.55-21.33%
Power Tolerance
0~+3%
Maximum Power Voltage (Vmp)
40.56-40.90V
Maximum Power Current (Imp)
13.07-13.45A
Open Circuit Voltage (Voc)
49.26-49.62V
Short Circuit Current (Isc)
13.71-14.03A
Temperature Coefficient (Pmax)
-0.35%/°C
